Belt Options
Part Number STC-17How to Select a Belt
Please note that the Belt W1120 is on backorder with no ETA at this time.
Find your outboard motor model and type in the table below to figure out what belt is compatible with it. Then select a belt from the options in the drop-down box above and click "Add To Cart".
| Model and Type | Belt Size |
|---|---|

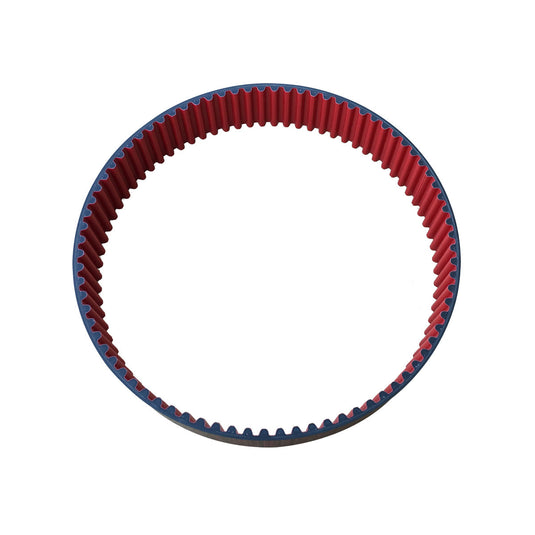

| Super Long Tail Short | Belt 640 (line tooth pattern) |
| Super Long Tail Tall | |

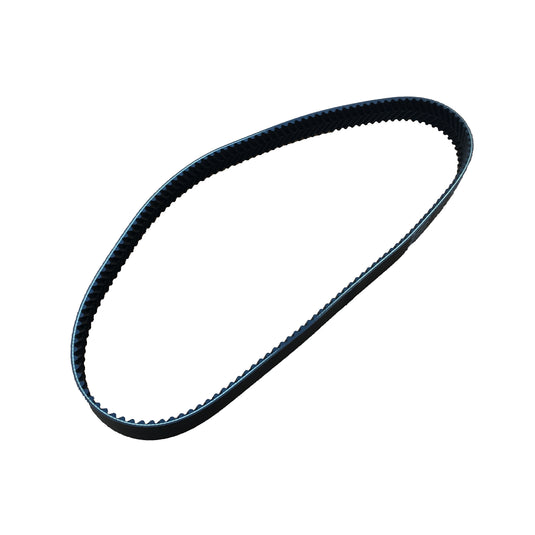

| Hyper Drive with W Pattern Sprocket | Belt W 1120 (W tooth pattern) |

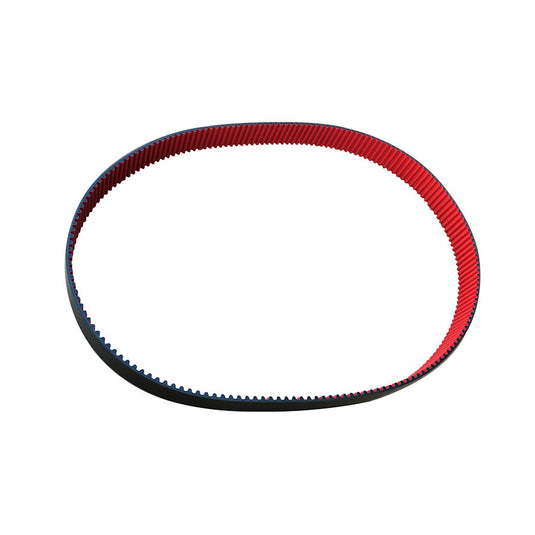

| Hyper Drive | Belt 1120 (line tooth pattern) |
| Mini "Louisiana Special" Short | |

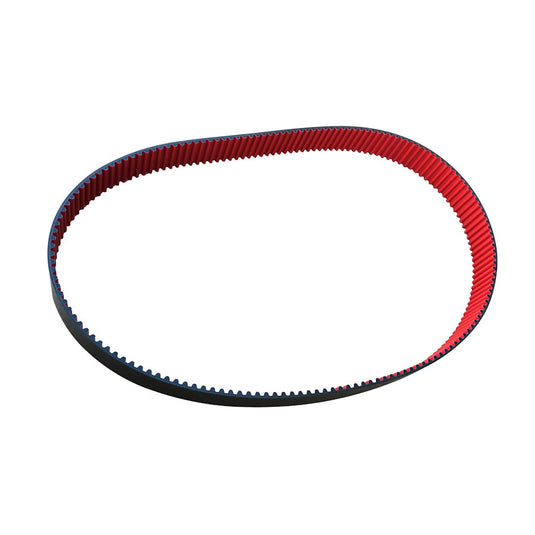

| Mini "Louisiana Special" Tall | Belt 1280 (line tooth pattern) |
| Hunter Short | |
| Lite Short | |
| Mini Sport Short | |
| Sport Short | |
| Sport Merc Short | |
| HDR Short | |
| Hunter Tall | Belt 1440 (line tooth pattern) |
| Lite Tall | |
| Mini Tall | |
| Sport Tall | |
| Sport Merc Tall | |
| HDR Tall |
Belt Tooth Pattern

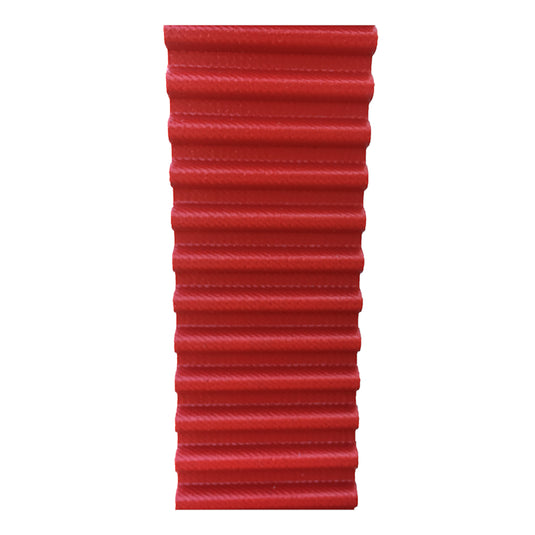

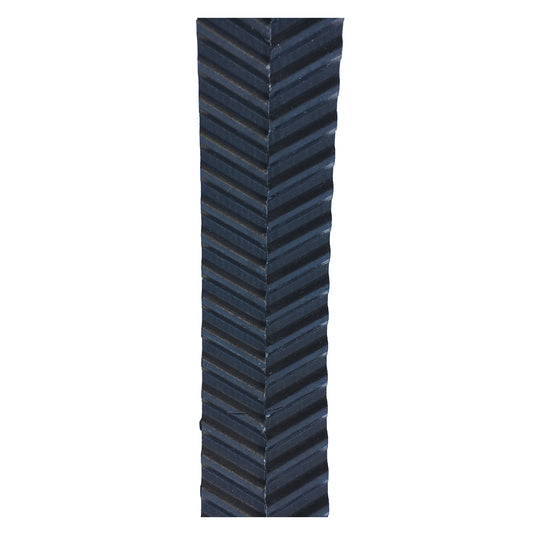

Most belt driven Mud Buddy outboard motors use a belt with the line tooth pattern; only a few surface Hyperdrive early models use the belt with the W tooth pattern. Click on one of the images below to take a closer look at the belt patern.
× ![]()
Click on the image below to look at the item.
Watch Travis demonstrate how to properly set the belt tension of your outboard motor.
